HLM 10 Marine Crane

Rental Equipment

From hydraulic power units and pump packages to marine cranes, umbilical reelers and filtration equipment, we offer one of the most diverse ranges of specialist hydraulic and mechanical equipment in the UK, available for deployment across the globe.

Overview

No of Ext			1st Ext	2nd Ext	3rd Ext
1S	Radius (M)	4,64	6,54
	SWL (Kg)	2,310	1,650
2S	Radius (M)	4,69	6.55	8.41
	SWL (Kg)	2,280	1,620	1,260

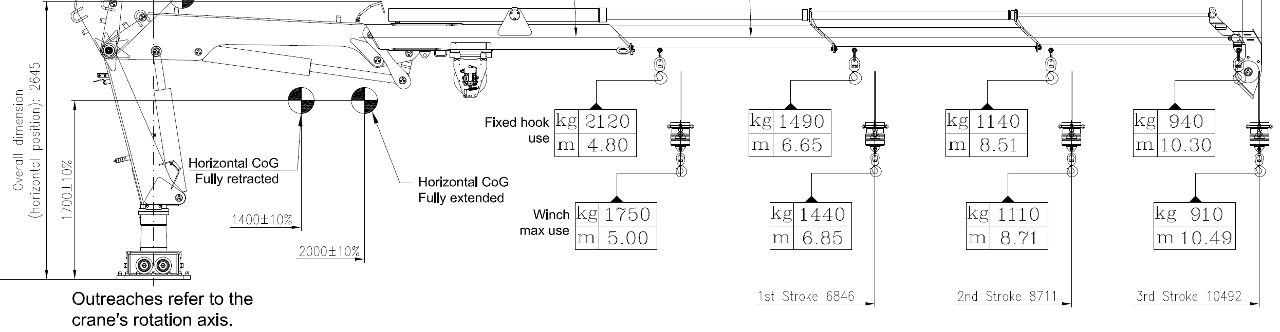

3S	Radius (M)	4.80	6.65	8.51	10.30
	SWL (Kg)	2,120	1,490	1,140	940

No of Ext

1st Ext

2nd Ext

3rd Ext

Radius (M)

4,64

6,54

SWL (Kg)

2,310

1,650

Radius (M)

4,69

6.55

8.41

SWL (Kg)

2,280

1,620

1,260

Radius (M)

4.80

6.65

8.51

10.30

SWL (Kg)

2,120

1,490

1,140

940

Max dynamic overturning moment	167	kNm
Max dynamic vertical force	47	kN
Max slewing torque	18	kNm
Mass weight *	1800	kg
Slewing angle	378°	limited
Slewing time (195°) (25 L/min)	20	sec
Max oil pressure	230	bar
Standard winch (0.8 t)	80	kg
Standard rope d-lenght	8/35	mm/m
Hoisting speed (2° layer) (30 L/min)	33	m/min
Standard winch (1.0 t)	100	kg
Standard rope d-lenght	10/35	mm/m
Hoisting speed (2° layer) (30 L/min)	28	m/min
Standard winch (1.5 t)	130	kg
Standard rope d-lenght	10/35	mm/m
Hoisting speed (2° layer) (30 L/min)	18(D)-22(T)	m/min
1st boom extension time (30 L/min)	27	sec
2nd boom extension time (30 L/min)	27	sec
Telescopic extension time (34 L/min)	65	sec
Suggested HPU for the above windches	15	kW
Recommended oil flow	35	L/min
Oil tank recommended capacity	120	L
* Tolerance +/- 5%; basement and winch not included
